Our product
NURA -310
What we do?
RDS Make the Nation Clean and Green?
POLLUTION FREE
ECO FRIENDLY
ECONOMICAL
TECHNOLOGICAL EXCELLENCE

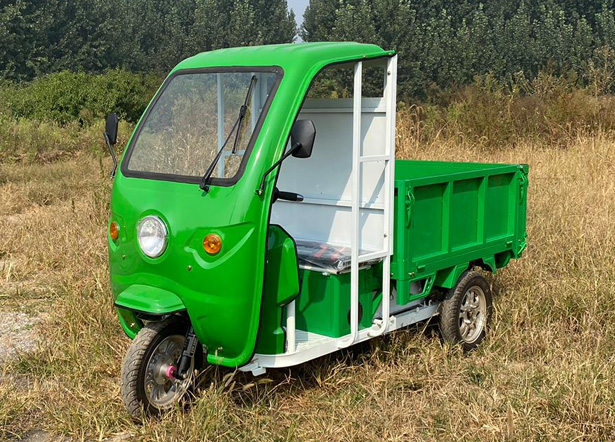

Specification of E- cart for Garbage carrying capacity
upto 310 kg in a single trip
Indicators | Specifications |
Type | 3 wheels electric battery-operated cart |
Cabin | Weather proof complete metal enclosed cabin with Windscreen glass (Toughened) for driver protection with necessary frame structure for protection from heat and rain |
Seating capacity | Cushioned seat to accommodate 2 Persons |
WHEELS & TYRES in mm | Front : 3.75 -12 Rear : 3.75 -12 |
Overall Length | 2760 mm + 5% Tolerance |
Overall Width | 1000 mm + 5% Tolerance |
Brake system | Double Rear Drum type with pedal |
Suspension | Front: Telescopic Suspensor Rear: Leaf springs with spring damper |
Cart movement | Both forward and reverse directions, 1400 mm + 10% Tolerance |
Ground clearance | 160mm To 170mm |
Rear cargo box size (L*B*H) | 1400mm x 1000mm x 450mm |
Dry Weight | 300 kg |
Pay Load | Upto 310 kg |
Run distance per charge | 60- 80 KM/Charge (Lithium battery) |
Speed of Vehicle | 25 kms/hr |
Gradeability (Climbing Ability) | ≤ 7 degree |
Battery capacity | 48 V and 80 AH of Lithium ion Phosphate Battery |
Charge time | 5-6 hrs |
Charger and digital charge level indicator for monitoring | AC 220-230 V 50HZ (15 Amps SMPS Charger) |
Motor | Brushless DC 48V 1200W |
Power transmission | Differential |
Speedometer | Analog/Digital Meter |
Drive | Rear–Wheel Drive |
Battery warranty | 3 years |
Motor warranty | 1 year |
Warranty for Vehicle | 1 year |
